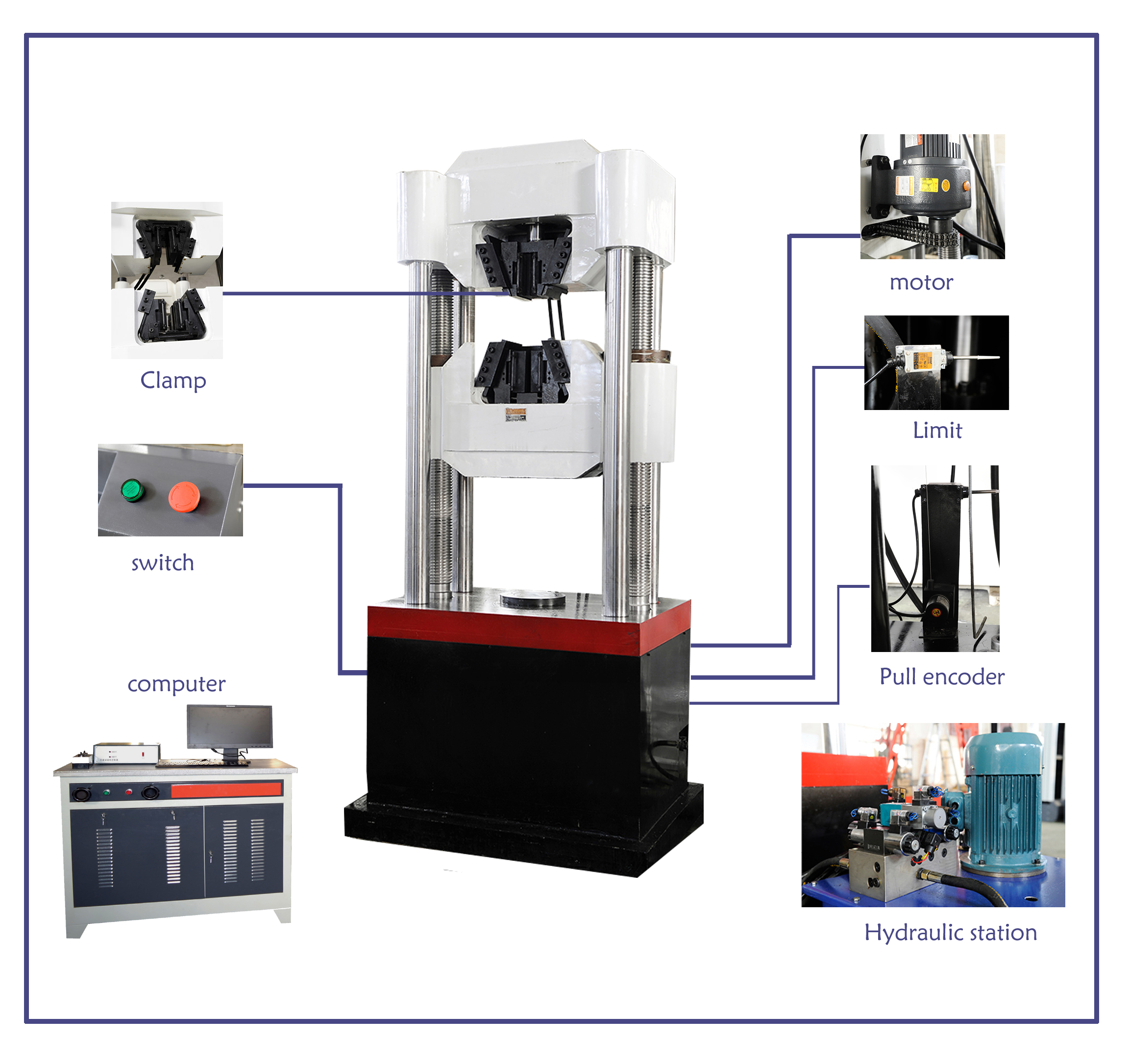

The oil cylinder mounted under the host, gap sealing fuel tanks, two pillars, two screw frame structure (commonly known as four-post). Space for tensile tests on test, the test space can be used for compression, flexural and shear test (need to increase the corresponding aids). Lower beam movements using cycloid reducer, sprockets, chains, screw vice drive, to achieve tension, compression adjustment space. Main oil cylinder honing cylinders, hydraulic force sensors (precision load cell force measurement to be added, is a special configuration). Automatic hydraulic clamping system to facilitate clamping the sample, good stability. Configuration-related samples can be completed accompanied steel, metal samples, steel hinge line (host needs to be changed), cables, fasteners, concrete and other tests.

Product type static hydraulic testing systems

The standard :GBT228 ISO: 15630-1,6892 ASTM: A370, C39, C469, E8 other: EN 10002-1

Owned material metal:asphalt / rock / concrete, fasteners, components

Industry metallurgical industry, quality inspection centers, universities, industrial supplies, automotive / rail / ship building, aviation industry

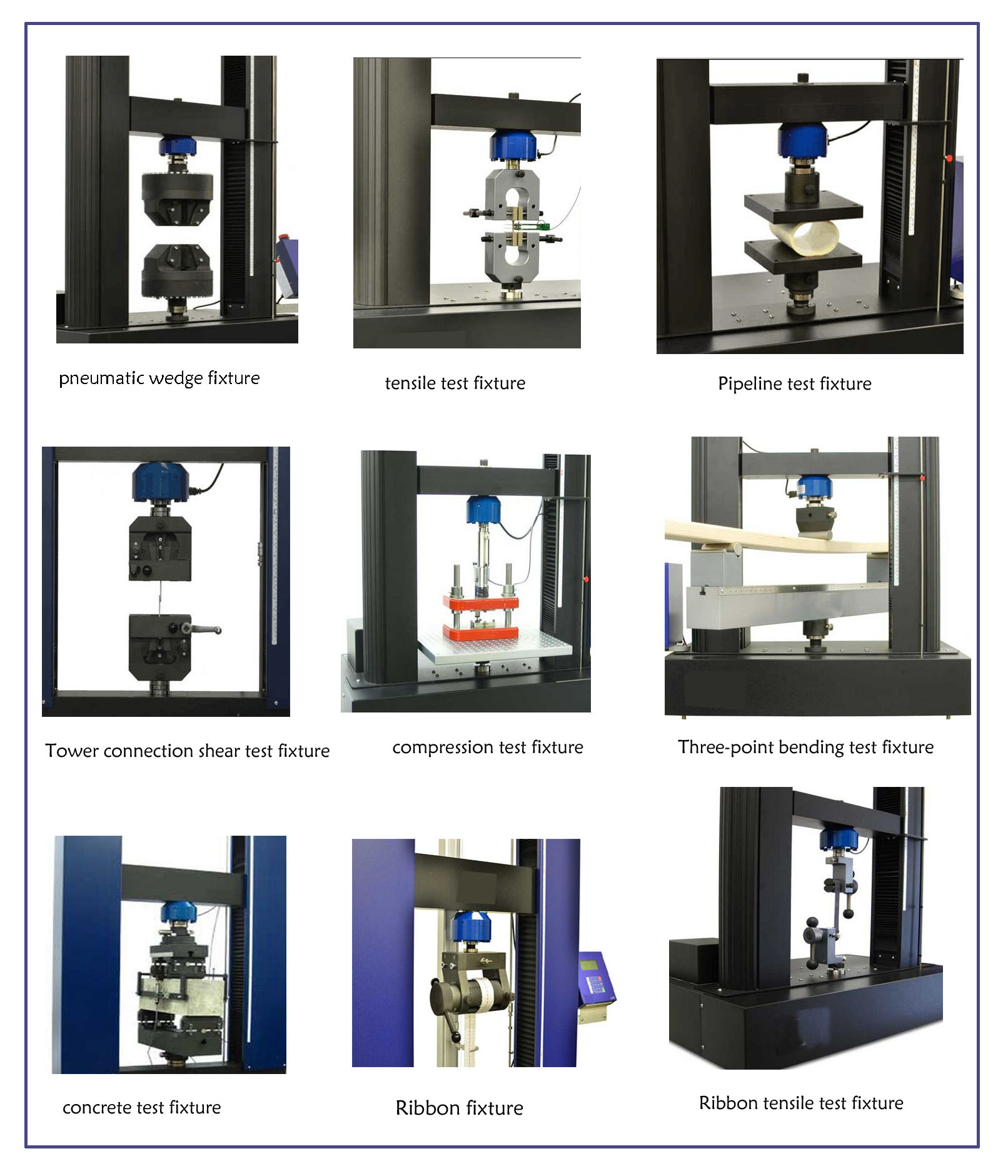

Test type stretching: compression, bending , cut

■ Host screw gap adjustment mechanism with the moving beam with a reasonable working position and stress state.

■ customized according to the requirements of the sample and configure related test space can be accompanied by complete sample reinforced steel hinge wire, cable, fasteners, concrete tests

■ Hydraulic clamping device can independently adjust clamping speed (configurable inching clamping device according to customer requirements)

■ You can choose according to the requirements of a load sensor or oil pressure sensor, effectively improve the test force measurement range and accuracy values.

■ fuel tank mounted under the host structure reduces the height of the center of gravity lower test to reduce the impact of the breaking machine damage.

■ can accurately measure the distance after moving beam with optical encoder.

■ integrated oil source design makes the machine more compact and reasonable, reduce floor space.

■ provides manual and automatic dual control system, choose the operating mode.

■ built-in integrated technology-based controller card, reducing wiring, improve test real-time control and real-time acquisition capabilities, improve product stability.
