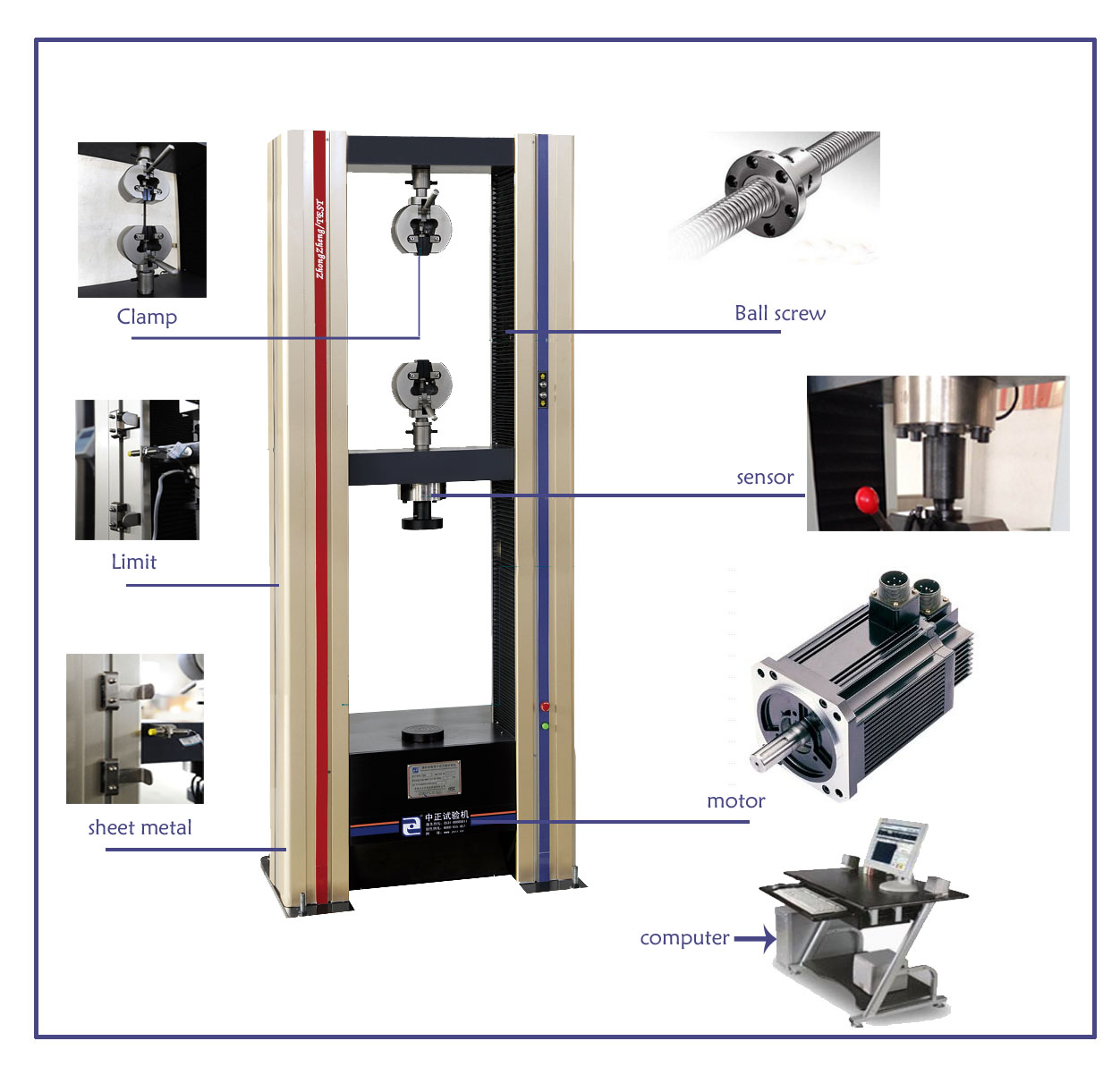

WDW series and WDW-S Series testing machine
with Hyun Kim aluminum cover, spray or
plated beams, AC power or precision AC servo motor, imported precision ball
screw; advanced chip technology, professional design of data acquisition,
amplification and control systems, test force, deformation amplification, A / D
conversion process to achieve a fully digital adjustment.
welcome to send the message to us,we will contact you in time!
Jinan Zhongzheng Testing Machine Manufacturing Co., Ltd.
Email: sales@jnzz.cn
Telephone: 0086-531-88976426
Fax: 0086-531-88886861
Skype:adaliu833
Zip: 250101
Address:No. 49, East Industrial Park, Huanxiangdian, Licheng District, Jinan, Shandong, China (Mainland)
The standard: GBT228 ISO:
6892 ASTM: A370 Other
Owned materials metal: plastic, composite materials, springs, clothing /
footwear, wood, rubber / elastomer, foam materials, biomedical, line pipe,
electrical / electronic, bonding, paper, textiles, film, components, ceramic /
glass, food, packaging,Industry metallurgical industry, quality inspection centers, universities,
industrial supplies, automotive / rail / ship manufacturing, aviation
manufacturing, biomedical
Test type stretching: compression, bending, shear, peel, low cycle
fatigue
|
The main technical parameters
|
WDW Series
|
WDW-S Series
|
|
2
|
10 20
|
50
|
100
|
200
|
300
|
500
|
600
|
|
Structure type
|
floor
structure
|
|
Max test force（KN）
|
2
|
10 20
|
50
|
100
|
200
|
300
|
500
|
600
|
|
Tester Level
|
1 (0.5)
|
|
Operation
|
Computer control (Chinese or English software
operation)
|
LCD digital display
|
|
Force measurement range
|
2% or 0.4% -100%
-100% of the maximum test force maximum test force
|
|
Accuracy of testing force
|
Better than ± 1% of indicated value (± 0.5% special
selection)
|
|
Deformation display error
|
± 1% (or ± 0.5%)
|
|
The minimum test force resolution
|
0.01N
|
|
Beam displacement accuracy
|
±1%（±0.5%）
|
|
Deformation accuracy
|
Better than ± 1% (± 0.5%)
|
|
Speed range
|
0.01-500mm / min or 0.01-300mm / min
|
|
Test trip
|
≥600 mm (can be customized according to customer)
|
|
Test space adjustment mechanism
|
AC servo motor or AC stepper motor, low noise belt
drive
|
|
Standards compliant
|
In line with national GB / T2611 standard
|
|
Protection
|
Overload protection, limit protection
|
|
Power supply
|
220 V or 380V
|
|
Working environment
|
Room temperature -45 ℃, humidity 20% -80%
|
|

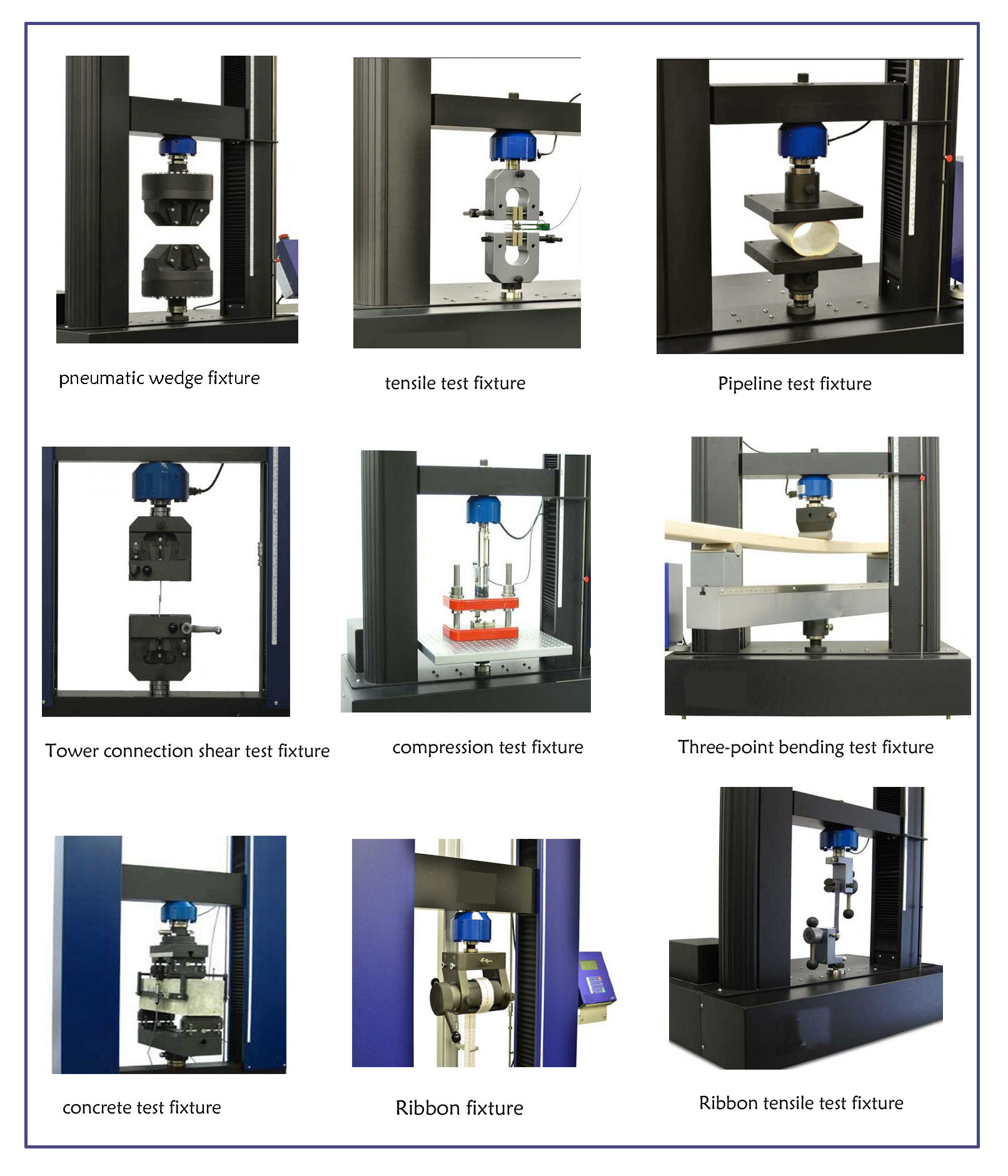

Fixture form
|
According to customer requirements, configure the
appropriate fixture. Special fixtures can be customized according to
customers.
|
■ During the test the speed of moving beams
automatically according to pre-set change, you can manually change;
■ Automatic switching depending on the load size to the appropriate range to
ensure the accuracy of measurement data; zero test force measurement,
calibration and archiving, without any analog adjustment links, highly
integrated control circuit;
■ Automatic Calibration: The system can automatically show the accuracy of the
calibration value;
■ Automatic saving: the end of the test, the test data and curves automatically
saved;
■ process to achieve: the testing process, measurement,
display, and analysis by the computer to complete;
■ batch test: The specimen of the same parameters, can be sequentially
completed after a set;
■ Test Software: Chinese and English interface, menu prompts, mouse operation.
