This series of impact testing machine
for the determination of metallic materials at room temperature (or low) state
Under dynamic load resistance performance hit, in
order to determine the quality of materials under dynamic load status effects.,
The machine adopts MCU control, Yang placed to achieve → Location → impact → measurement → calculation → store and analyze the results of the integration of
operations → peer
printing, High efficiency, high precision.

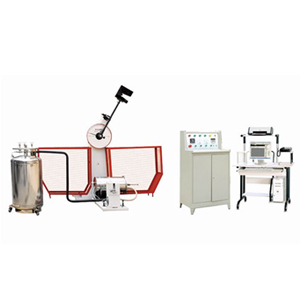

low-temperature impact testing machine with a compressor (or liquid nitrogen
cooling), The lowest temperature reaches -60 ℃
(or -190 ℃, -196 ℃ special requirements), Especially for the determination
of metallic materials at low temperature impact resistance state. Metallurgy, machinery manufacturing, scientific
research and testing, and other units detection material and significant
research and development of new materials testing equipment.

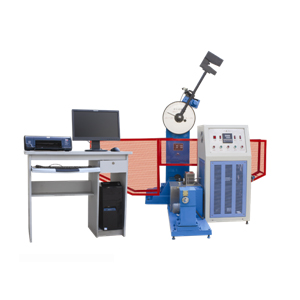

Computer-controlled
semi-automatic impact testing machine(Room temperature) Computer
controlled automatic impact tester (low temperature)
welcome to send the message to us,we will contact you in time!
Jinan Zhongzheng Testing Machine Manufacturing Co., Ltd.
Email: sales@jnzz.cn
Telephone: 0086-531-88976426
Fax: 0086-531-88886861
Skype:adaliu833
Zip: 250101
Address:No. 49, East Industrial Park, Huanxiangdian, Licheng District, Jinan, Shandong, China (Mainland)
The criteria used: In line with the
national standard GB / T3808-2002 《pendulum impact testing machines》, According to national
standard GB / T229-2007 《metal
Charpy pendulum impact test method》 of metal material
impact test.
Belongs Material: Metal Material
Industry: This
series of impact testing machine is the ideal choice for metallurgy, boiler and
pressure vessel steel, steel, metal, casting, pumps, valves, fasteners, travel,
machinery manufacturing, petrochemical, aerospace and research institutions and
other sectors of physics and chemistry laboratories percussion device.
Test Type: Impact
|
Impact energy
|
150/300J
|
Cooling way
|
Compressor cooling (-100 Following is a liquid
nitrogen cooling)
|
|
Pre pendulum Yang angle
|
150°
|
Sample box capacity
|
10 are
cooled 4
|
|
Pendulum shaft center to the impact point
distance
|
750mm
|
Low temperature range
|
Or -60 ℃ ~ -190 ℃, -196 ℃
|
|
Impact velocity
|
5.2m/s
|
Sample size
|
10mm×10mm×55mm
|
|
Specimen bearing span
|
40mm
|
Dimensions
|
1600mm×850mm×1340mm
|
|
Rounded jaws
|
R1-1.5mm
|
Test machine weight
|
约500Kg
|
|
Impact of the blade fillet
|
R2-2.5mm，R8±0.05mm(Non-standard)
|
Power supply
|
Three-phase AC 380V±10%
|
■ semi-automatic impact
testing machine computer control, Yang pendulum, hanging pendulum impact both
electrical and mechanical control,Automatic impact testing machine equipped
with special devices to send samples automatically feed. Sample automatic face orientation, To ensure that the
sample baked to impact time is less than 4 seconds, Meet the requirements of low-temperature metal Charpy impact test method..
Sample Punch fractured surplus energy available automatic Yang pendulum,
Ready to do the next test. The computer can calculate
display material impact absorbed energy, toughness, the pendulum Yang angle and
test average, And can print when the mean value of the test data
and testing.
■ were
equipped with special liquid nitrogen tank.
